BOPET Film Factory - Advanced Manufacturing Solutions for High-Performance Polyester Films

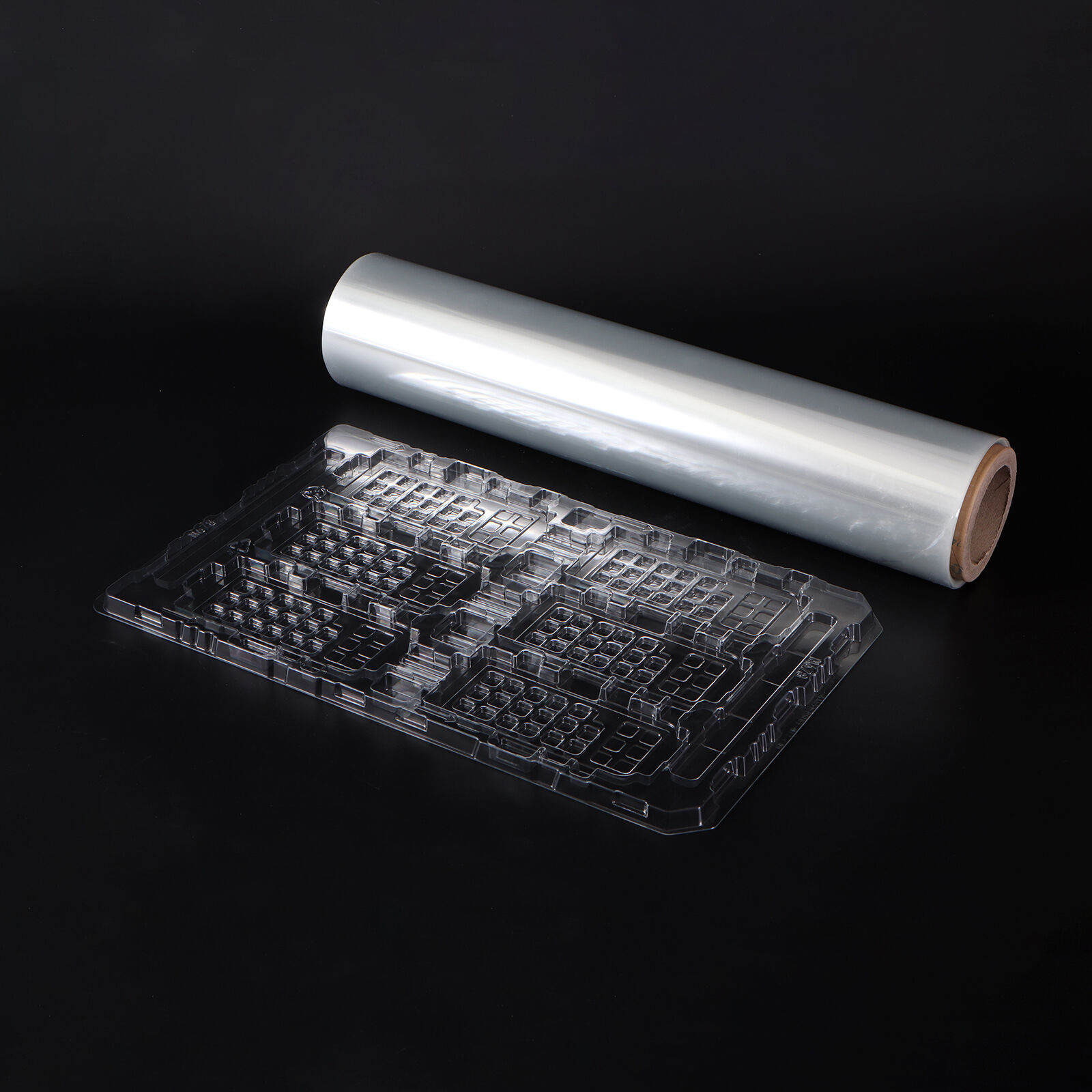

The technological sophistication embedded within a modern bopet film factory fundamentally determines the quality and performance characteristics of the output materials. At the heart of this technology lies the biaxial orientation process, which involves stretching the polymer film in two perpendicular directions under precisely controlled conditions. This orientation process aligns polymer chains along both axes, creating a molecular structure that exhibits dramatically enhanced mechanical strength, dimensional stability, and optical clarity compared to unoriented films. The stretching ratios, temperatures, and speeds are carefully optimized based on desired film properties, with typical ratios ranging from three to four times the original dimensions in each direction. State-of-the-art extrusion systems within the bopet film factory utilize twin-screw extruders that provide superior mixing, temperature control, and output consistency compared to older single-screw designs. These extruders process polyethylene terephthalate resin that has been carefully dried to remove moisture, which could otherwise cause hydrolytic degradation during the high-temperature melting process. Melt filtration systems remove any contamination or gel particles that could create defects in the finished film, ensuring optical clarity and uniform thickness. The casting process deposits the molten polymer onto precisely temperature-controlled chill rolls that rapidly solidify the material into an amorphous sheet with the exact thermal and structural properties needed for successful orientation. Sequential or simultaneous stretching technologies each offer distinct advantages depending on the desired film characteristics. Sequential systems stretch first in the machine direction through differential roll speeds, then in the transverse direction within a tenter frame, allowing independent optimization of properties in each axis. Simultaneous systems stretch both directions at once, creating more balanced properties and often superior dimensional stability. Advanced tenter frame designs incorporate sophisticated grip systems that hold the film edges securely while applying uniform tension across the entire width, preventing edge defects and maintaining consistent film properties from edge to center. Precise temperature profiling throughout multiple heating zones ensures the polymer reaches optimal temperature for molecular orientation without degradation. Corona or plasma surface treatment systems integrated into the production line modify the film surface at the molecular level, increasing surface energy to improve ink adhesion, coating receptivity, and lamination bonding strength. These treatments are carefully controlled and monitored to achieve specified treatment levels that remain stable over time. In-line coating capabilities within the bopet film factory enable the application of functional layers including heat seal coatings, barrier coatings, primer layers for metallization, or antiblock and slip additives that facilitate handling and processing. Modern coating technologies such as reverse gravure, micro-gravure, or slot die systems apply precise coating weights with excellent uniformity. Sophisticated quality monitoring systems continuously measure film thickness, optical properties, and surface characteristics, providing real-time feedback to automated control systems that make micro-adjustments to maintain specifications. This closed-loop control ensures every meter of film meets quality standards without requiring manual intervention or generating excessive waste from out-of-specification material.

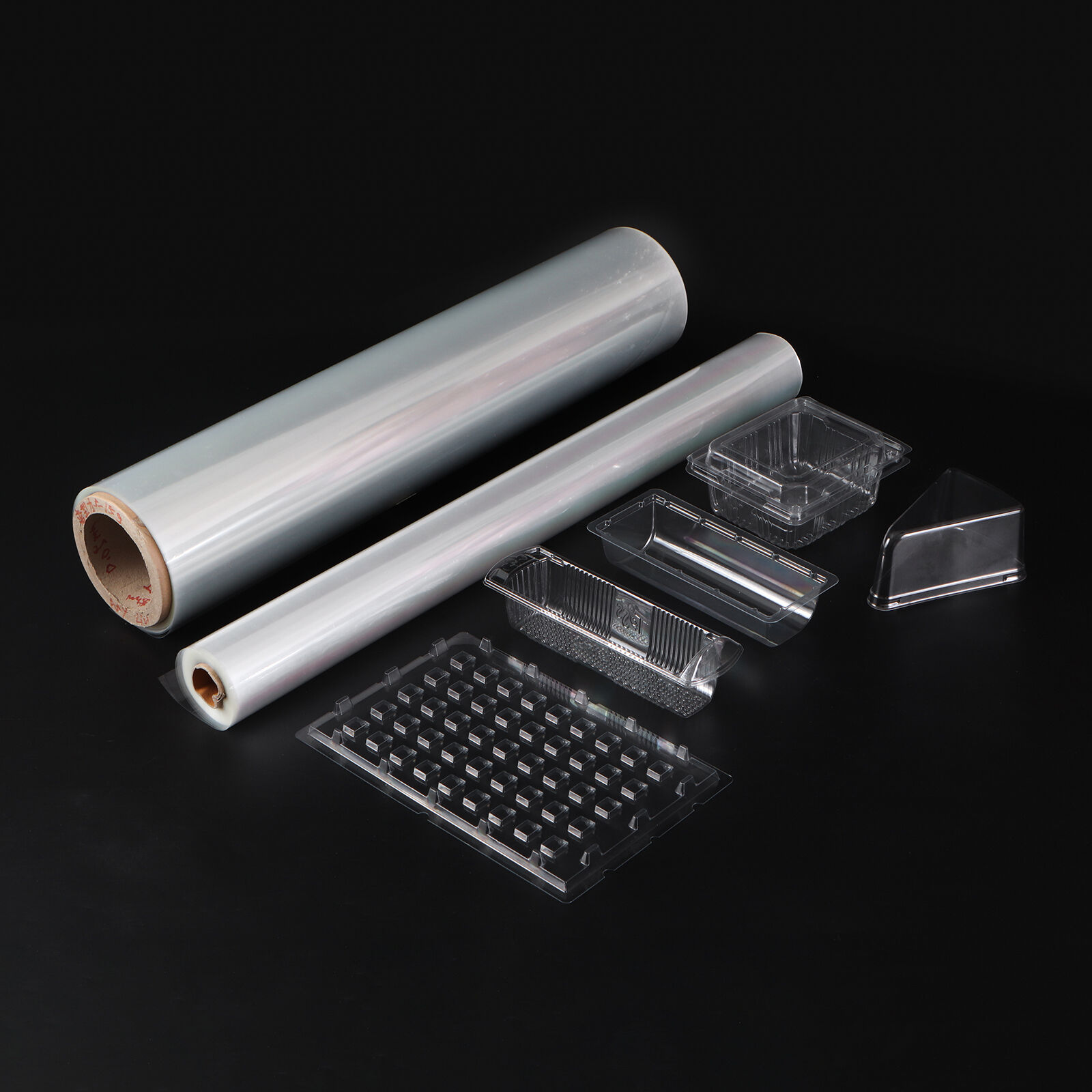

Quality assurance within a bopet film factory extends far beyond simple inspection, encompassing sophisticated testing protocols, statistical process control methodologies, and comprehensive documentation systems that guarantee material consistency and performance reliability. The quality journey begins with incoming raw material inspection, where laboratory technicians analyze polyethylene terephthalate resin for critical properties including intrinsic viscosity, which indicates polymer molecular weight and directly affects film mechanical properties. Moisture content testing ensures resin has been adequately dried before processing, preventing hydrolytic chain scission during melting that would compromise film strength and clarity. Color and clarity measurements establish baseline characteristics that influence final film appearance. Throughout the production process, automated measurement systems continuously monitor key parameters without disrupting material flow. Thickness gauging systems using beta radiation, infrared sensors, or capacitive measurement techniques scan across the film width multiple times per second, detecting variations as small as a fraction of a micron. This data feeds into profile control systems that automatically adjust die bolts or extruder parameters to maintain uniform thickness distribution. Optical property monitoring measures clarity, haze, and gloss using calibrated spectrophotometers that quantify how much light passes through or reflects from the film surface. These properties directly impact packaging appearance and printability, making consistent control essential for customer satisfaction. Tensile testing equipment in the quality laboratory regularly samples production to verify mechanical properties including tensile strength in both machine and transverse directions, elongation at break, elastic modulus, and tear resistance. These tests confirm that the orientation process has properly developed the molecular structure needed for end-use performance. Surface treatment level measurement using standardized solutions or electronic instruments ensures that corona or plasma treatment has achieved the specified surface energy required for adequate ink or coating adhesion. Treatment levels naturally decay over time, so the bopet film factory conducts testing on aged samples to verify that treatment remains effective throughout the material's shelf life. Coefficient of friction testing measures how easily film surfaces slide against each other or against metal processing equipment, which affects runnability on high-speed packaging lines and printing presses. The factory adjusts slip additive levels to achieve optimal friction properties for different applications. Barrier property testing quantifies oxygen transmission rate, water vapor transmission rate, and other permeation characteristics relevant to packaging applications where product protection from environmental factors is critical. Heat seal strength testing for coated films measures the force required to separate sealed areas, ensuring packaging integrity. Dimensional stability testing evaluates how much the film shrinks or expands when exposed to elevated temperatures, which affects registration in multicolor printing and lamination processes. The bopet film factory maintains comprehensive statistical process control charts tracking all these parameters over time, identifying trends before they result in out-of-specification material. Traceability systems link every roll of finished film back through production parameters, raw material lots, and quality test results, enabling rapid investigation if any customer issues arise. Certification to international quality management standards such as ISO 9001 demonstrates the factory's commitment to systematic quality practices and continuous improvement. For food packaging applications, additional certifications verify compliance with food contact regulations in various markets. This comprehensive quality infrastructure gives you confidence that materials from a professional bopet film factory will perform consistently in your processes and meet your customers' expectations.

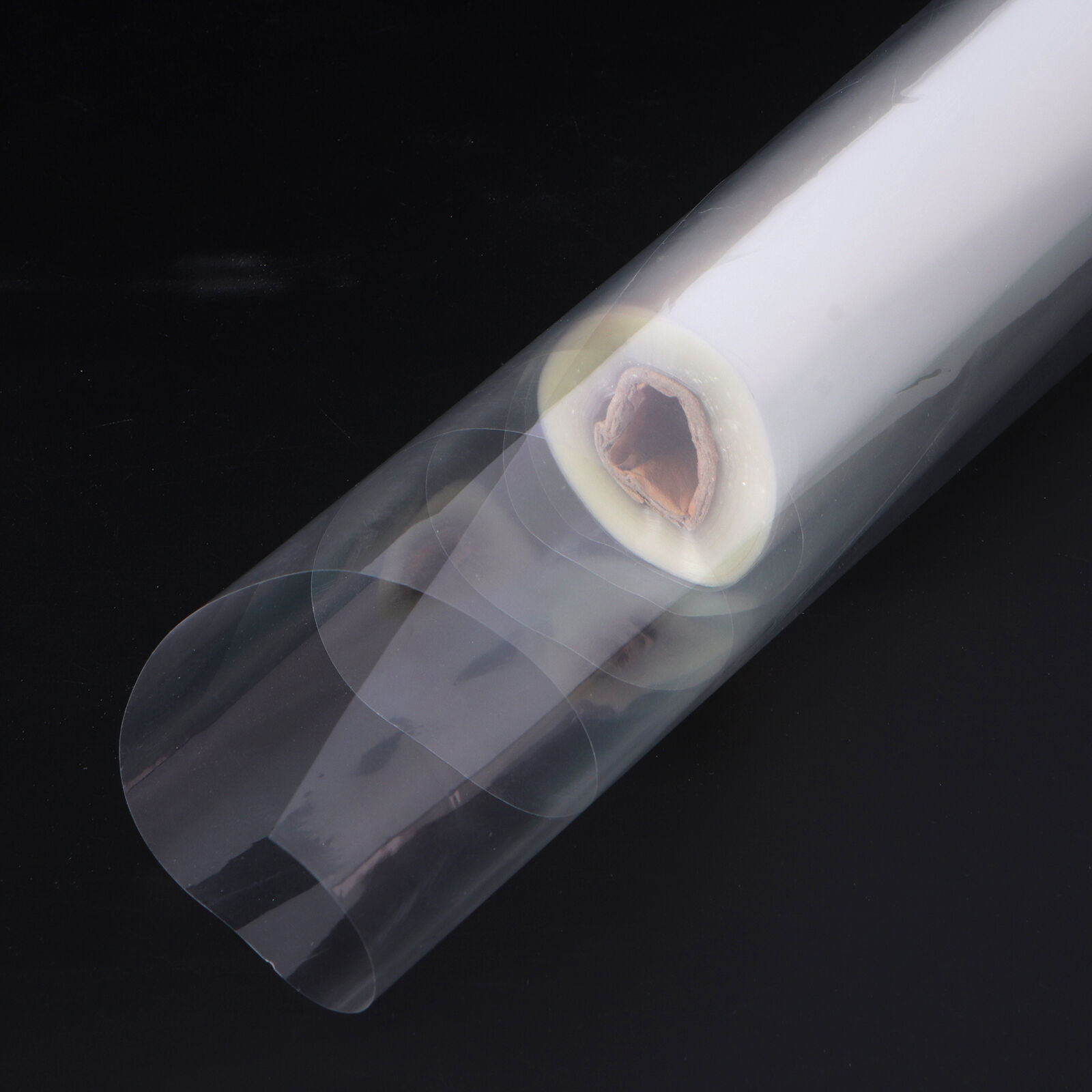

The remarkable versatility of films produced in a bopet film factory stems from the ability to tailor material properties through formulation adjustments, thickness selection, surface treatments, and functional coatings to meet specific application requirements across diverse industries. In flexible packaging, which represents the largest market for these films, manufacturers leverage the excellent clarity and gloss to create attractive packages that showcase products effectively on retail shelves. The high tensile strength and puncture resistance protect package contents during distribution and handling, reducing product loss from package failures. Excellent dimensional stability ensures that printed graphics remain in precise registration during multicolor printing processes and that packages maintain their shape rather than distorting or wrinkling. The bopet film factory can produce films with specialized heat seal coatings that enable package fabrication using high-speed form-fill-seal equipment, dramatically improving packaging efficiency. Barrier coatings or metallization provide protection against oxygen, moisture, light, and aromas, extending product shelf life for sensitive foods, pharmaceuticals, and other perishables. In the electronics industry, films from a bopet film factory serve as electrical insulation in applications ranging from motor windings to capacitor dielectrics and flexible printed circuit substrates. The excellent dielectric strength prevents electrical breakdown while the dimensional stability maintains precise circuit patterns even at elevated operating temperatures. Specialized grades with controlled surface resistivity prevent static buildup that could damage sensitive electronic components. For industrial applications, these films function as release liners, protective layers during manufacturing processes, and carriers for adhesive tapes. The smooth, uniform surface ensures consistent release properties while the mechanical strength allows thin gauges that minimize material costs. In imaging and graphics applications, specially treated films accept inks readily and maintain printed image quality over time, serving as substrates for labels, decals, overlays, and outdoor signage. The excellent weatherability and UV resistance prevent degradation from sunlight exposure. The renewable energy sector utilizes films from bopet film factories as backsheet components in solar panels, where the material must withstand decades of outdoor exposure while providing electrical insulation and moisture protection. Specialized formulations with enhanced UV resistance and hydrolysis resistance meet these demanding requirements. Customization capabilities within a bopet film factory enable precise optimization for each application. Thickness can be adjusted from under twelve microns for lightweight packaging to over three hundred microns for industrial applications requiring maximum strength and rigidity. Copolymer formulations incorporate additional monomers that modify properties such as heat seal temperature, chemical resistance, or flexibility. Additive packages including UV absorbers, antioxidants, antiblock agents, and slip additives fine-tune performance characteristics. Multi-layer coextrusion technology combines different polymer formulations in a single film structure, placing specific properties exactly where needed. For example, a heat-sealable layer on one surface while maintaining non-stick properties on the opposite surface. Surface treatment intensity can be adjusted from light treatment for basic adhesion to aggressive treatment for difficult coatings or inks. Specialty coatings applied in-line or off-line add functionality including anti-fog properties for fresh produce packaging, easy-open features for consumer convenience, or antimicrobial properties for healthcare applications. The technical staff at a professional bopet film factory works closely with customers to understand their specific requirements and recommend optimal film specifications. Pilot trials and sample production allow validation before committing to full production runs. This collaborative approach and extensive customization capability ensure that films from a bopet film factory deliver optimal performance for your particular application, providing competitive advantages through enhanced functionality or cost efficiency.
