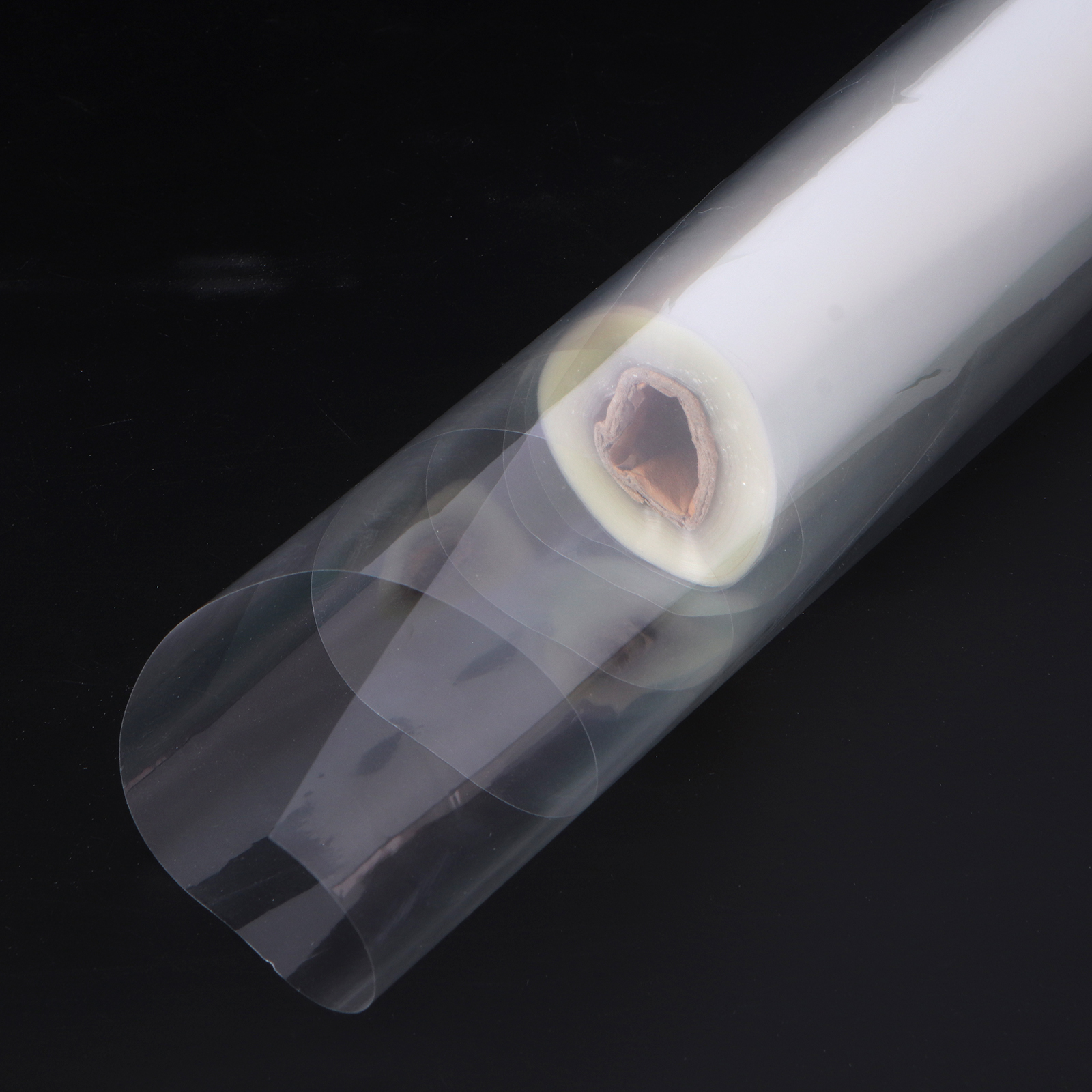

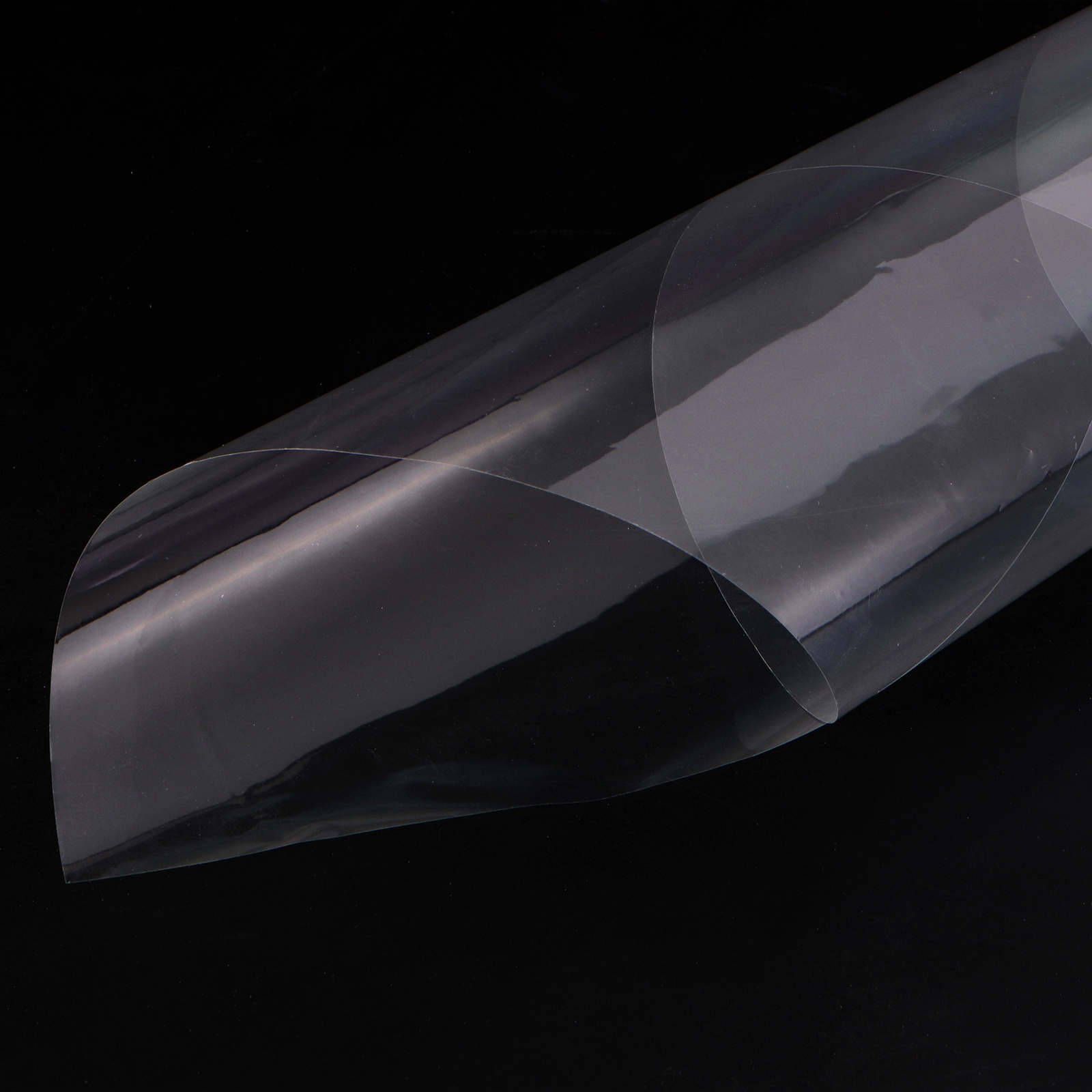

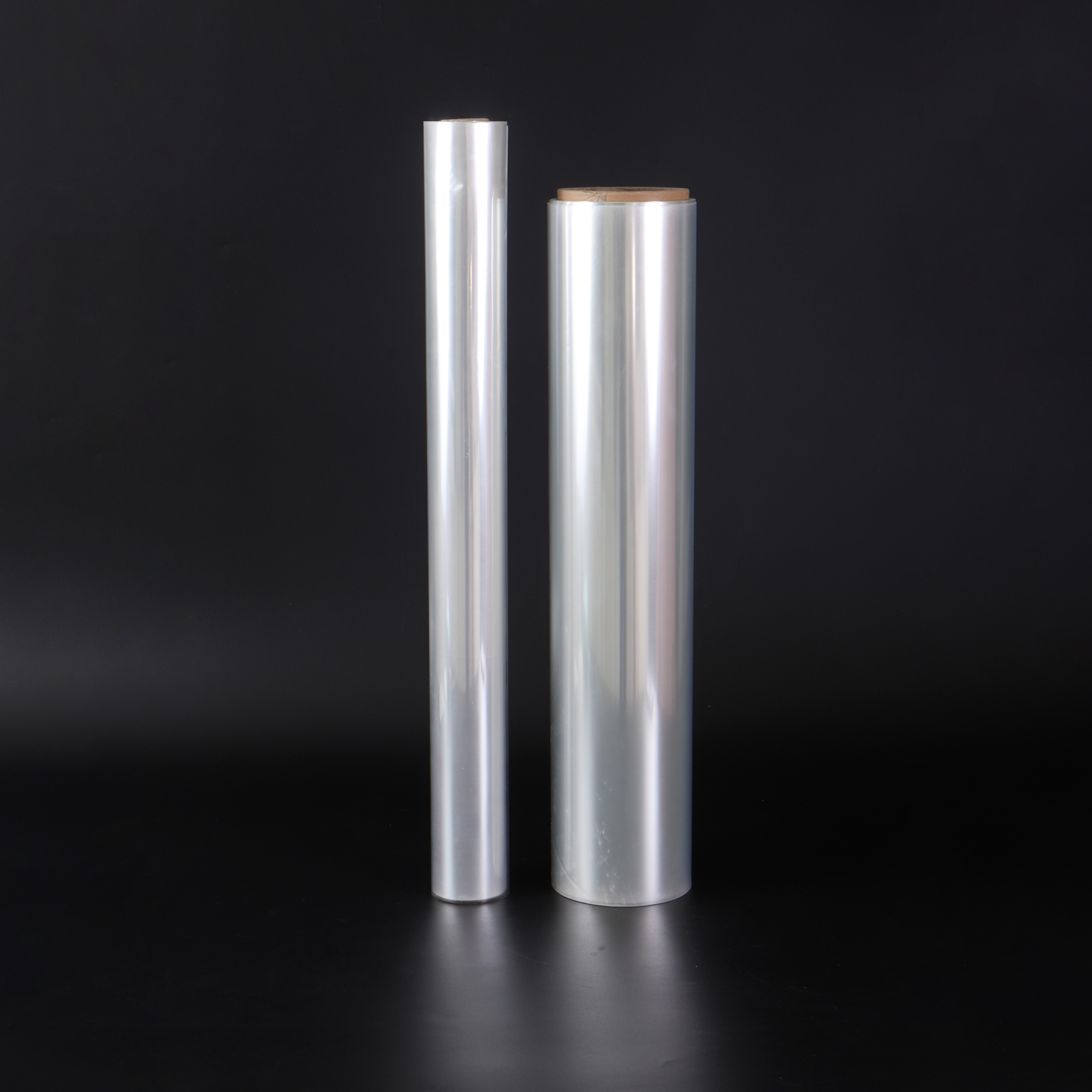

Pet film roll for blister packaging
| Thickness Tolerance | According to GB(higher than GB) |
| Density | 1.36g/cm3 |
| Place of Origin | Jiangsu, China |
| Thickness | 0.15-3mm |
| Certificate | ROHS/Reach/ISO9001 |
| Size | custom size |
| Surface | Glossy |
| Color | Clear or Customized Color |
| MOQ | 500KG |
| Width | Within 1250mm |
| Sample | Available(free Sample) |
| Tensile-Strength(lengthwise,crosswise),MPa | ≥52.0 |
| Impact strength(cut)(four-way)KJ/M2 | ≥5.0 |
| Drop impact strenght | No fracture |
| Application | Vacuum forming /thermofomring /Folding Boxes/Printing etc |
1.High transparency, good glossy.
2.High temperature resistance.（up to 120 degrees）
3.Does not scratch easily.
4.High hardness,excellent impact resistance
5.No odor or taste, and does not produce toxic gases.
6.Strong viscosity, good barrier resistance.
7.No stress-whitening, fold-resistant
8.Good chemical stability, not easy corrosion
9.Resistance to low temperature embrittlement.
10.The surface has no water waves, no crystal points, and no double-phase whiteing.
11.Anti fog for long time usage, preventing infection from the outside world.
Shrink-wrap packaging boxes are a common type of plastic packaging in the field of packaging printing. Their core advantage lies in their wide application in single-item packaging or combination packaging for industries such as food, cosmetics, and hardware. Taking egg tart shrink-wrap boxes as an example, the design needs to take into account transparent display, pressure protection, and portability, making them a commonly used takeout packaging solution in the baking and catering industries.
The use of PET or PP materials for the blister packaging boxes mainly involves the application of vacuum thermoforming technology to heat and soften the PET plastic sheets, which are then adhered to the surface of the mold. After cooling, a container of a specific shape is formed. Why choose PET material? Because PET material has high transparency, strong chemical stability, complies with food contact safety standards, and is recyclable. It has low cost, quick molding, and the wall thickness is usually controlled within 0.8-1.5mm, which not only ensures strength but also avoids material waste.
Take the "egg tray" as an example. The interior is designed with independent grooves, and the depth of each groove matches the height of the egg, preventing it from tipping over or deforming during transportation. The lid is designed with a snap-on mechanism, which has better sealing performance than the ordinary flip lid, and can effectively prevent dust and leakage. Such packaging boxes can also be adapted for baked goods, or small samples of cosmetics, hardware parts, etc., which are not food items. Its transparent feature enables consumers to visually inspect the contents directly, enhancing the purchasing experience.
The customization of the blister packaging lies in three aspects: size, color, and logo printing. Logo printing can be done using gold stamping, screen printing or UV technology to enhance brand recognition.
Compared with traditional paper boxes or foam boxes, thermoformed boxes have better pressure resistance and wear resistance, making them suitable for long-distance transportation or stacking storage. For food that needs refrigeration, PP material is recommended; for display in normal temperature conditions, PET material can be chosen, balancing transparency and cost.

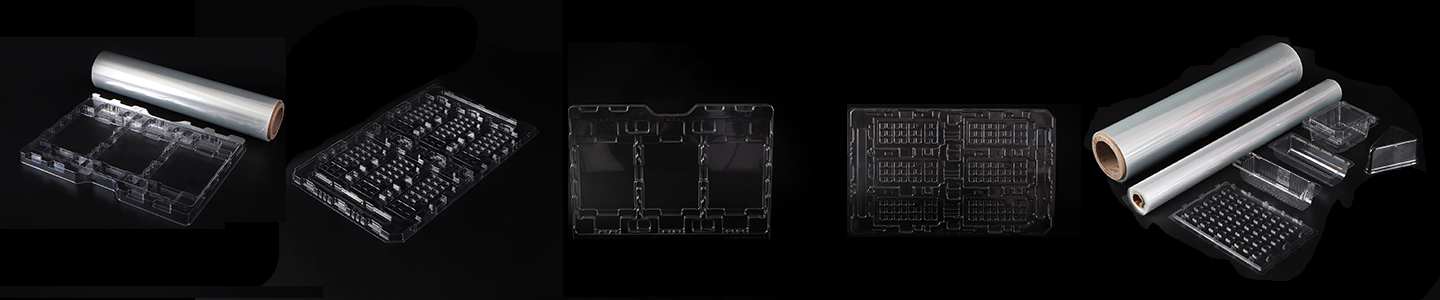

Additional Display of Blister Forming Products
FAQ
Q1:What's your minimum order quantity?
A1:Normally our moq is 500kgs.
Q2:Is it possible to provide free samples to check the quality?
A2:Yes,free samples can be provided to check the quality.It is better to you
to pay the delivery fee.
Q3:What's your shipping methods?
A3: For samples, we will choose express such as DHL,FEDEx,UPS,TNT and so on. For orders, we will ship by sea or by air. Normally,we will load the goods at Port Shanghai or Ningbo.
Q4:How long will you deliever the goods?
A4:Usually5-7working days after receiving the deposit.
Q5:How about OEM/ODM?
A5:Available.
Q6:What's the payment term you can accept?
A6:Normally,the payment term will be 30% deposit after order confirmed rest balance should be settled before shipment.lf your quantity is big enough we can also accept LC at sight. Besides,Alibaba,west union....also ok for us.
Q7:Can I visit your factory?And how can I get there?
A7:Of course.We warmly welcome you to visit to us.Our factory located in Su Zhou,China.You can come here by air to Shanghai,we will pick you up at the airport.
