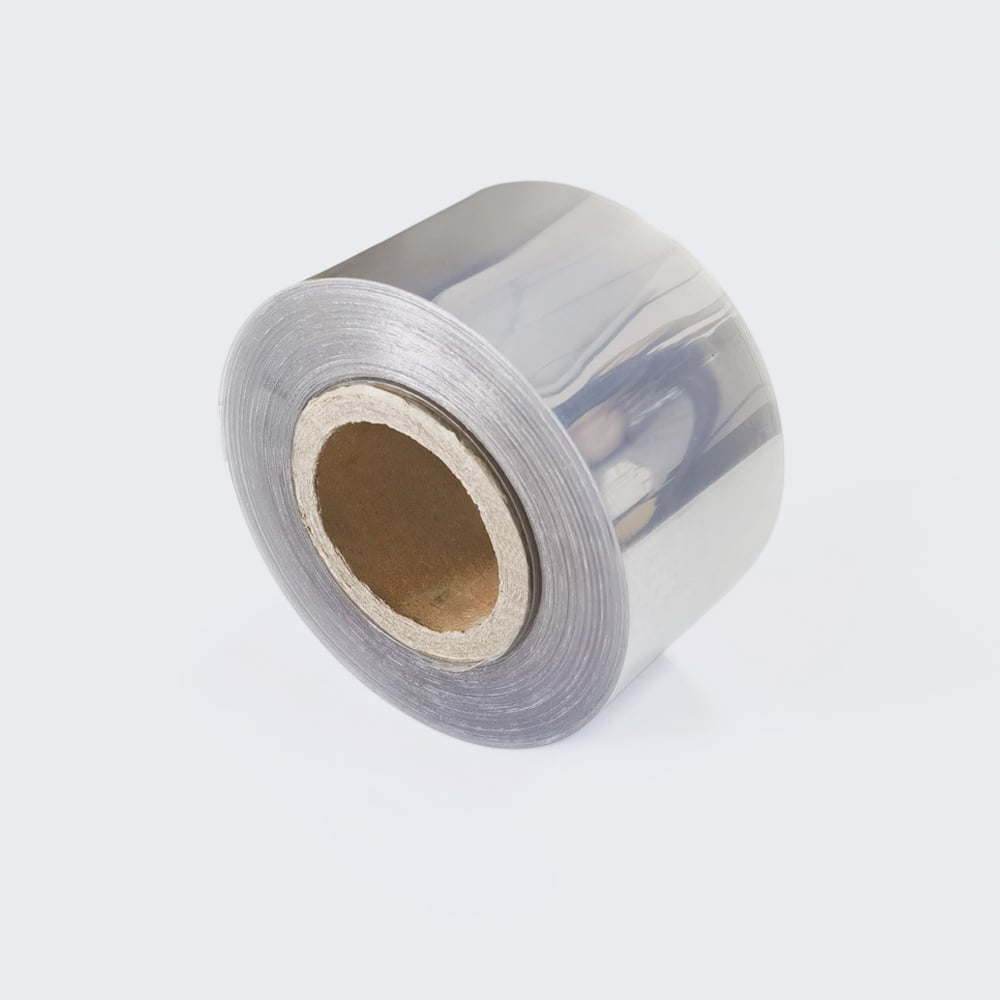

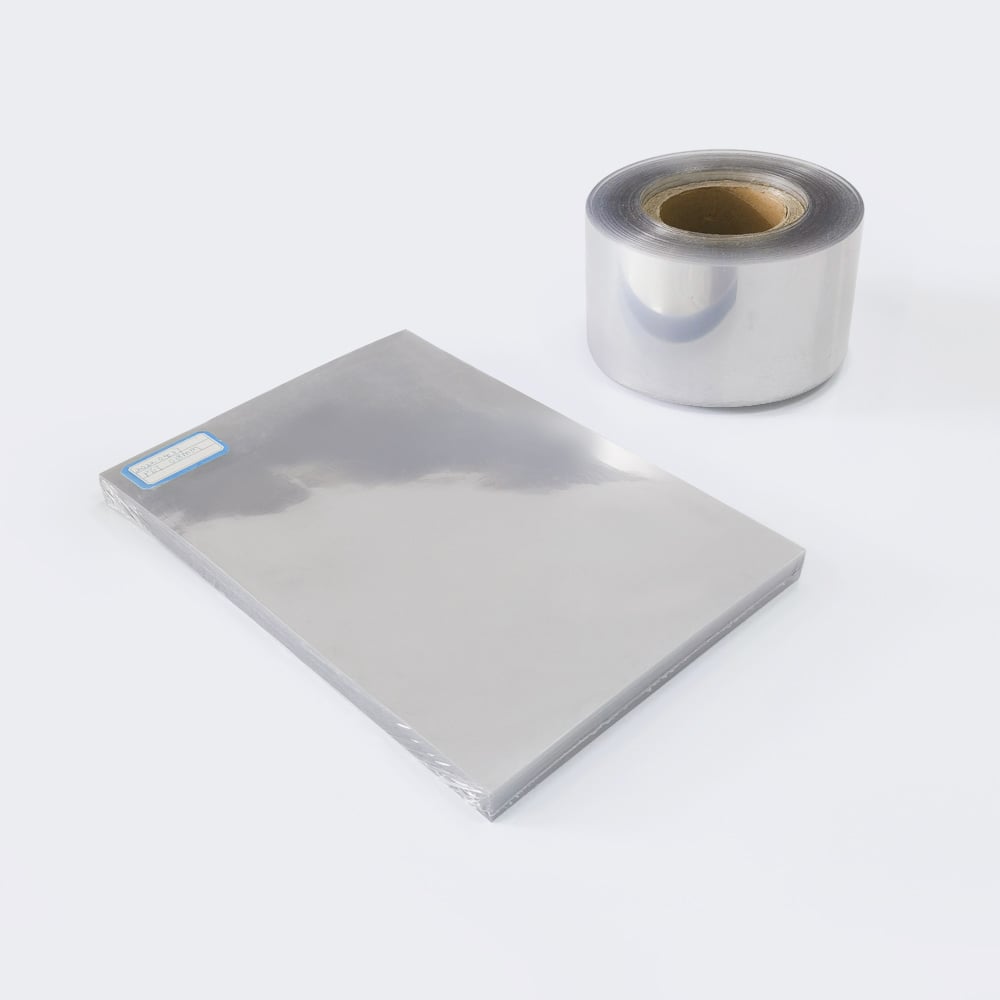

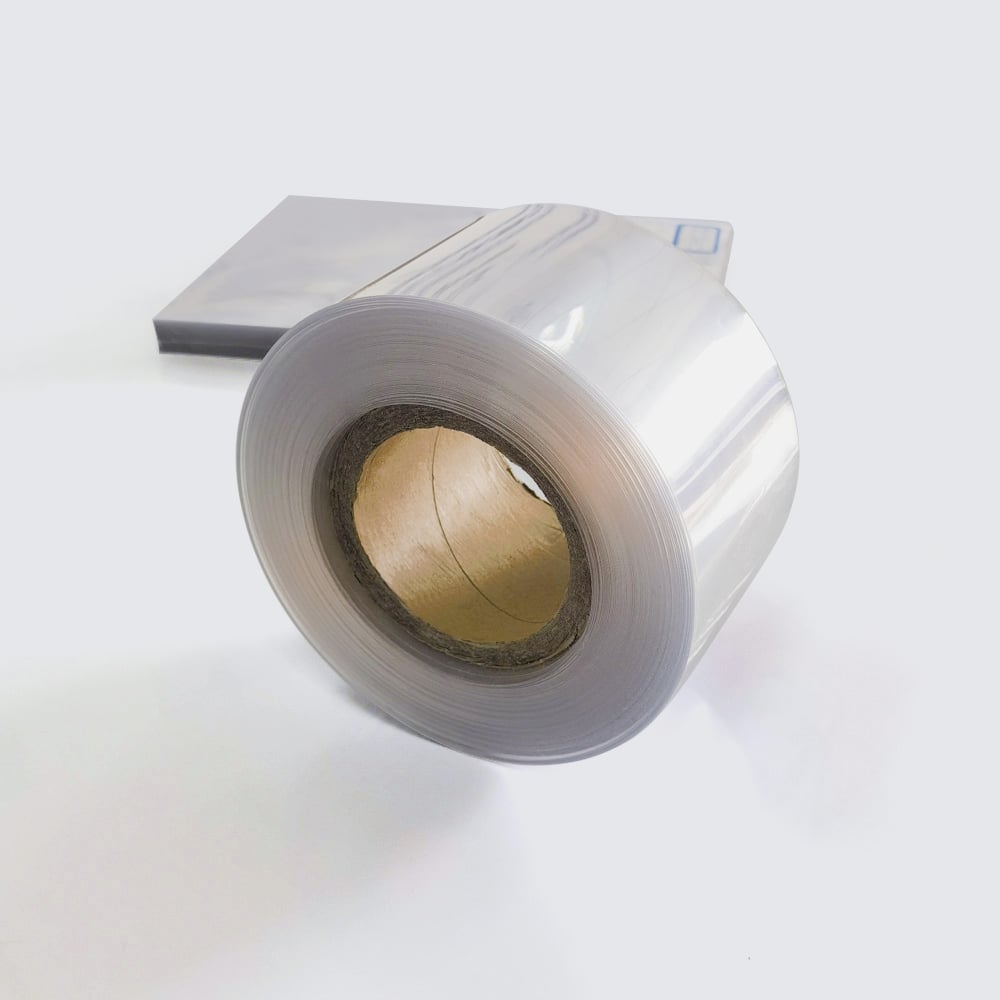

0.1mm-6mm Thick Clear Transparent Plastic PET Film Roll for Thermoforming

Description

Feature of PET:

1.High transparency, good glossy.

2.High temperature resistance.（up to 120 degrees）

3.Does not scratch easily.

4.High hardness,excellent impact resistance

5.No odor or taste, and does not produce toxic gases.

6.Strong viscosity, good barrier resistance.

7.No stress-whitening, fold-resistant

8.Good chemical stability, not easy corrosion

9.Resistance to low temperature embrittlement.

10.The surface has no water waves, no crystal points, and no double-phase whiteing.

11.Anti fog for long time usage, preventing infection from the outside world.

Mechanical properties:

Tensile Strength: Usually within the range of 50 - 80 MPa to ensure that the sheet has sufficient tensile strength during the thermoforming process.

Impact Strength: Usually within the range of 5 - 15 kJ/m² to ensure that the sheet has adequate impact resistance.

Thermal properties:

Coefficient of Thermal Expansion: Usually within the range of 70 - 100 ppm/°C.

Heat Deflection Temperature: Usually within the range of 70 - 90°C to ensure that the sheet material has sufficient stability during processing and usage.

Processing performance:

Molding Temperature Range: Usually within the range of 240 - 280°C to ensure that the sheet can be successfully molded in the blow molding equipment.

Environmental Performance:

Chemical Resistance: Generally exhibits good resistance to acids, alkalis and solvents, suitable for use in various environments.

Weatherability: Usually has certain weather resistance, suitable for use in both indoor and outdoor environments.

Common types of PET include:

PET bottle grade:

It has excellent transparency, mechanical properties and chemical resistance, and is widely used in beverage bottles, food bottles, cosmetic bottles and other fields.

PET film grade:

It has excellent tensile strength and transparency, and is commonly used in fields such as food packaging, electronic product protective films, and printing films.

PET Engineering Grade:

PET resins that have undergone special treatment or added additives to enhance their heat resistance, weather resistance and mechanical properties are suitable for engineering applications such as automotive components and electrical insulation materials.

PET fiber grade:

The PET resin used for producing synthetic fibers has excellent tensile strength and wear resistance, and is widely applied in textiles, carpets, industrial ropes and other fields.

PET Recycled Grade:

It has excellent plasticity and mechanical properties, and can be used for the production of recycled PET bottles, fibers, films and other products.

Widely applied:

Film switches, printing, electronics, tags, paper box skylights, toys, food, medicine, thermoforming, folding boxes, cosmetics, hardware and other industries.

Certification:

All products have been verified by SGS, REACH, RoHS and ISO to ensure quality.

We offer a wide range of PET materials in various widths and thicknesses, including full rolls of film sheets, PET flat sheets, single-sided or double-sided abdominal protection films, and they can be electrostatically treated. The actual parameters of the PET sheet used for thermoforming may vary depending on factors such as requirements, formulation, and processing techniques. If you need PET sheet rolls, it is recommended to contact Ocan to obtain the technical data sheet and accurate parameter information.
